W. C. Heller Shelving



Heller library shelving is designed for convenient, trouble-free service,
and is built to last for the life of your library, classroom, office.
Shelves are quickly and easily adjusted.
All single faced shelving is available
in 8", 10", or 12" depths, with or without back panels.
All double faced shelving is available in 16", 20". or 24" depths with back panels.
All end panels are 1 1/4" thick, center panels are 3/4" thick.
All base shelves are slightly tilted,
all other shelves are flat & adjustable every 1/2".
All shelves are solid maple or oak

SINGLE FACED WALL SHELVING

Quality Craftmanship is always the Benchmark of our Company

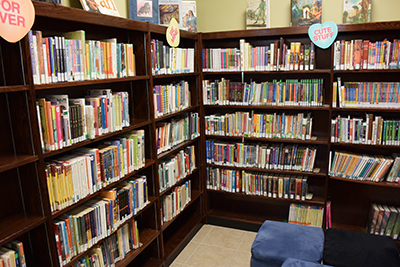

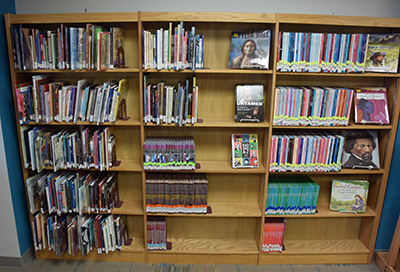

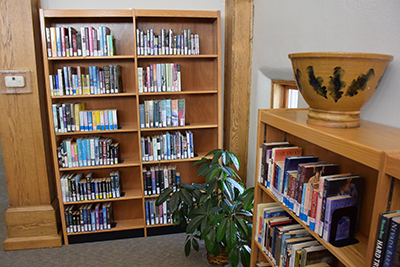

Single Faced Shelving of Different Heights in Corner



Single Faced Wall Shelving Built By W.C. Heller

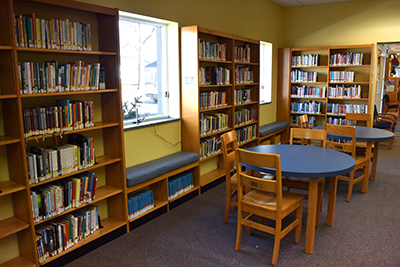

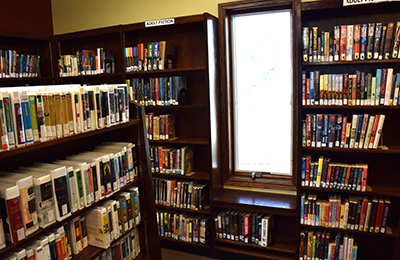

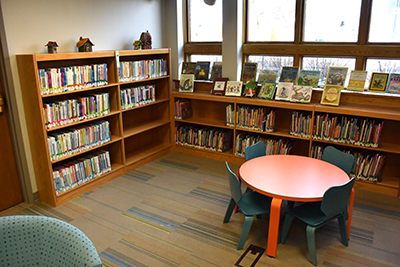

Single Faced Shelving with Window Bench



Single Faced Wall Shelving through Corner with Window Benches



Single Faced Shelving



Single Faced Wall Shelving Through Corner



Shelving Code Number


LSB Open Back Single Face Shelving
LSCB Single Face Shelving with Back
LO Double Face Shelving
LSM Single Face Open Back Magazine Shelving
LSCM Single Face Magazine Shelving with Backs
LS Single Face Open Back newspaper Shelving
LSCN Single Face newspaper Shelving with Backs



SET - UP INSTRUCTIONS FOR HELLER WALL UNITS
Can be opened here

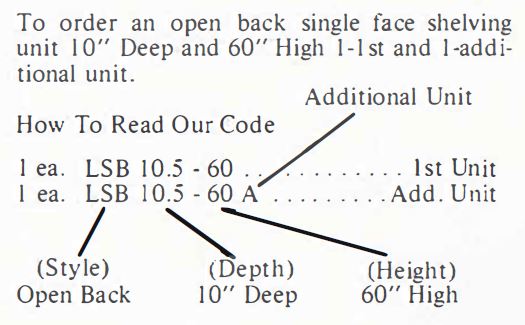

How to Read our Shelving Code

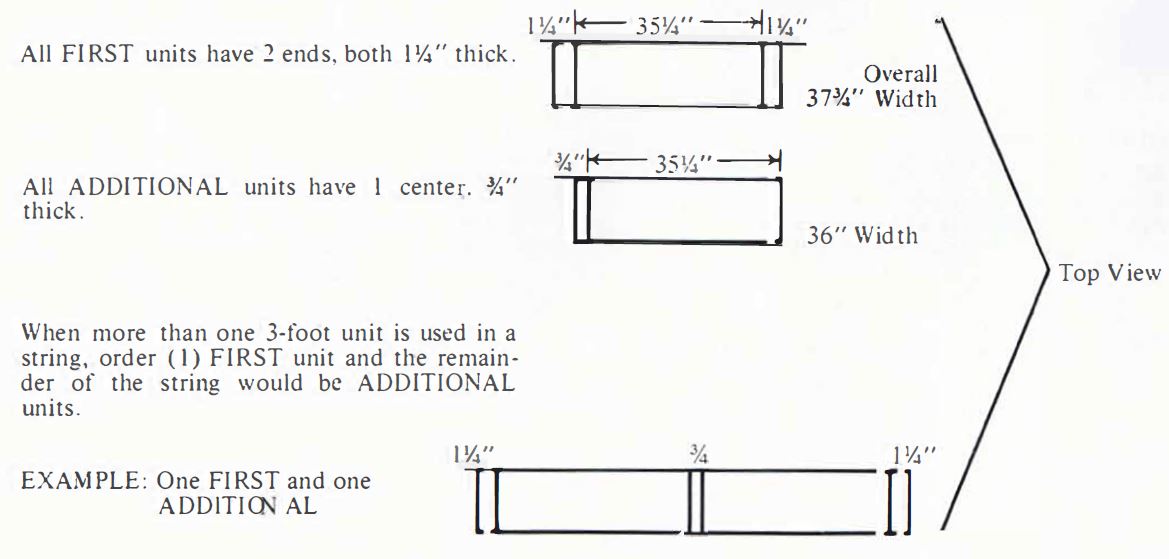

Shelving Top View


Single Faced Shelving

Single face wall shelving is available in two styles -The LSB style which is open back shelving and the LSCB style which is closed back shelving.

NOTE: Doors may be added to any shelving units. We offer: sliding glass, wood framed glass doors, or all wood doors.



Both LSB and LSCB shelving are available in three depths 8", 10", and 12" and, 6 heights 42", 48", 60", 72", 82", and 96". Special sizes available if needed. 42" and 48" offered with optional matching or contrasting plastic laminated top when specified. Comer units are also available. For each string -one first unit is needed and the remainder of the string would be additional units.





Divider shelves are available for all Heller shelving. simply add No. DX to the end of the item order (IE: No. LSB 10.5-42A DX) and all shelves in the unit will be supplied with dividers. Each shelf comes with 7 slots and 3 dividers 7 3/4" high.





Shelf Chart for LSB and LSCB Single Face Shelving
Height Number of Adjustable Shelves
42" 2
48" 2
60" 3
72" 4
82" 5
96" 6
No. LSCB 12.5-72 1st Unit

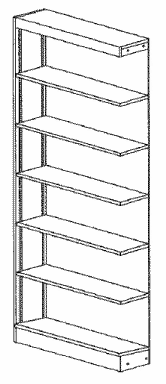

No. LSCB l 2.5-72A Additional Unit

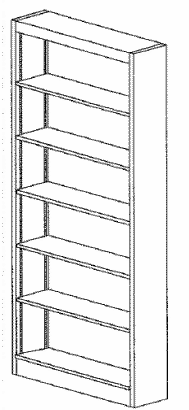

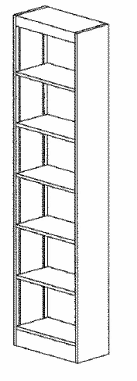

LSCB10.5-82EDR
Look at the details




EoR10.14-72



DOUBLE FACED ISLAND SHELVING

Quality Craftmanship is always the Benchmark of our Company

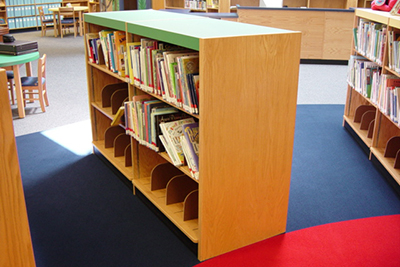

Double Faced Shelving with Dividers

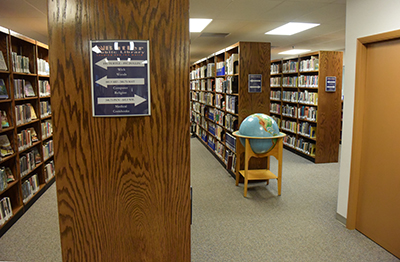

Forty-Five Feet of Double Faced Shelving



Double Faced Mobile Shelving Moved out of Place



Double Faced Mobile Shelving Units in Place

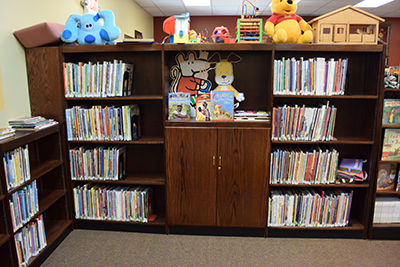

Double Faced Shelving with built in Cabinet



Variety of Double Faced Shelving Units



Double Faced Shelving Details

All double faced shelving begins with the prefix "LD" Double Units
come in 3 depths - 16", 20", and 24" - in heights of 42", 48", 60", 72" 82",
and 96"- special sizes available if needed. All our doubles come with
1/4" backs as we do not recommend them without backs.
All shelves are adjustable every 1/2 inch.
Double Faced Shelving
Height No-.of Adjustable Shelves/Unit
42" 4
48" 4
60" 6
72" 6
82" 8
96" 10



Divider Shelving





Divider shelves are available for all Heller shelving,
simply add No. DX to the end of item order
(IE: No. LD 20.5-42 DX) and all shelves
in the unit will be supplied with divid­er

Each shelf comes with 7 slots and 3 dividers 7 3/4" high.

LD24.5-48

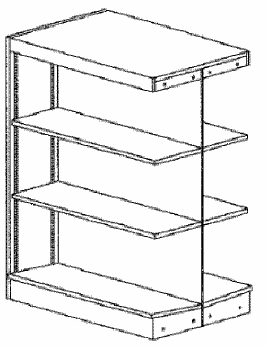

LD24.5-48A

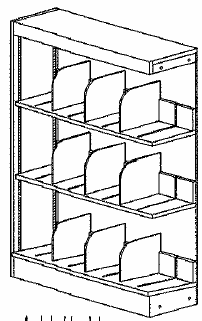

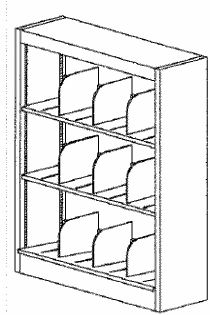

LSCB12.5-48DX
LSCB12.5-48ADX

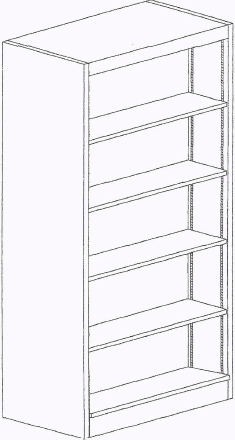

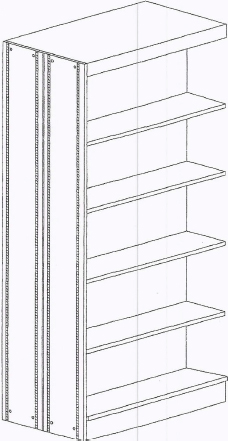

LD 20.5-72
Look at the details
LD 20.5-72A





DFMU-60
Look at details of the Double Faced Moblile Shelving







DFMU-48



NEWSPAPER AND MAGAZINE WALL SHELVING

Quality Craftmanship is always the Benchmark of our Company

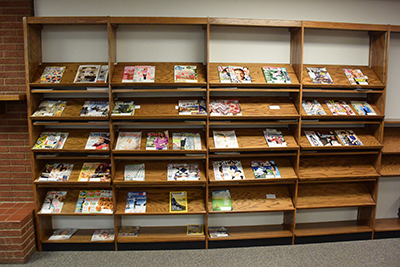

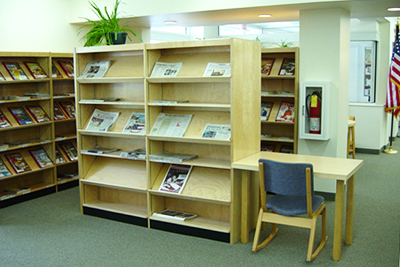

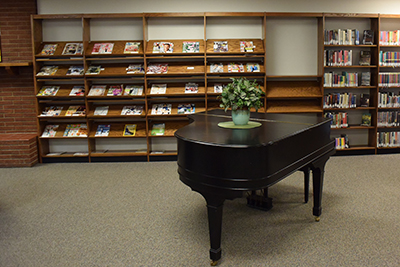

Magazine/Newspaper Wall Shelving



Magazine/Newspaper Wall Shelving

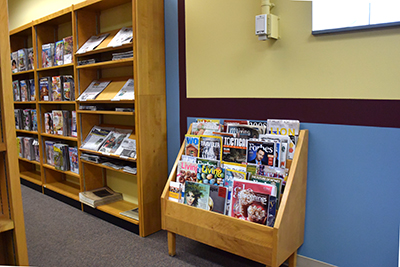

Magazine/Newspaper Wall and Floor Shelving



Magazine/Newspaper Wall Shelving



Magazine/Newspaper Wall Shelving

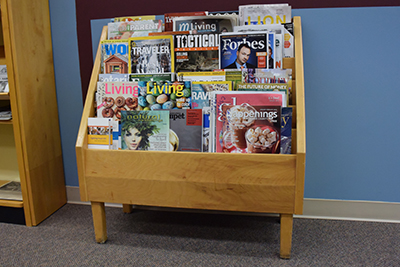

Magazine/Newspaper Floor Shelving

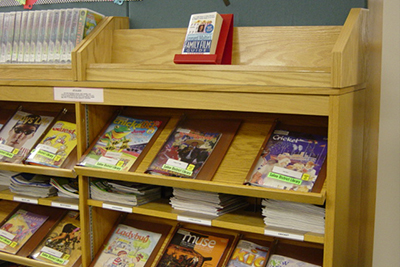

Magazine Wall Shelving Details

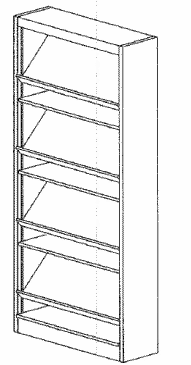

Magazine shelving is designed especially for attractive display of all sizes of magazines. Either open back LSM or closed back LSCM are available in 12" depths and 5 heights. Slanting shelves are available in standard bracket type or swivel type (on request).
Model HeightSlanting Shelves Flat Shelves
42"LSM & LSCM 12.5-48 48"21
LSM & LSCM 12.5-60 60"32
LSM & LSCM 12.5-72 72"32
LSM & LSCM 12.5-82 82"43
LSM & LSCM 12.5-96 96"54

Newspaper Shelving

Newspaper shelving is designed for efficient storage of newspapers. Either open back LSN or closed back LSCN are available in 12" depth and 72", 82" or 96" height. All sticks are 35" long in matching wood, with rubber lock ring. Newspaper section can be converted to magazine or regular shelving unit.
ModelHeightNumber of Sticks
LSN & LSCN 12.5-7272"6
LSN & LSCN 12.5-8282"8
LSN & LSCN 12.5-9696"8 sticks & 1 adjustable shelf



NOTE: Magazine shelves and newspaper inserts will adapt to double face shelving. Write for prices.

No. LSM 12.5-82 !st Unit

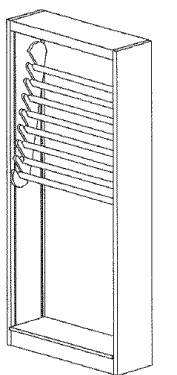

No. LSCN 12.5-82 1st Unit

Additional Units Available, see Price List







No. NPS-1 - NEWSPAPER sticks are made of wood, 35" Jong overall, have rubber ring, length for newspaper 26". Used with LSN & LSCN shelving.
LSCB12.5-48ADX
