W.C. Heller Card Files



All Heller card files are furnished with solid wood drawer fronts and molded plastic drawers (wood drawers available upon request). Go down the page for picture of drawer and drawer pull.

Any combination of units can be made with the use of the 5-drawer, 10-drawer and 15-drawer units. We recommend the 16" leg base with the units using more than 25 drawers. Style your own unit configuration to fit your needs.

CARD FILE UNITS

Quality Craftmanship is always the Benchmark of our Company





Card File

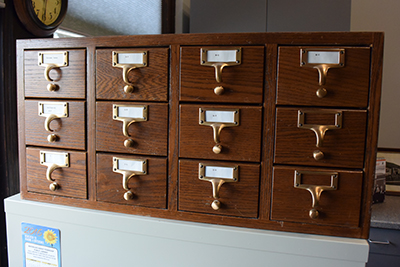

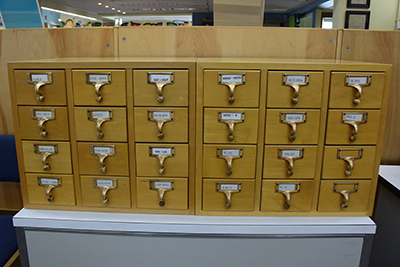

W.C. Heller's detailed craftmanship shows throughout the Card Files.





Card File Unit CF-30L







Card File Drawer with No.74 Bronze Pull 8

Heller rugged, reinforced drawers have 3/4'' solid wood fronts and provide long life. Metal follower holds cards in position.





Card File Unit



Drawer Unit Sizing


No. Width High Depth Capacity
LF-2 13 7/8" 5 1/2" 18" 2400
LF-4 13 7/8" 9 1/2" 18" 4800
LF-6 13 7/8" 13 1/2" 18" 7200
LF-9 20 1/2" 13 1/2" 18" 10,800
LF-12 20 1/2" 17 1/2" 18" 14,400

Explanation of Drawer Unit Styling

Any combination of units can be made with the use of the 5-drawer, 10-drawer and 15-drawer units. We recommend the 16" leg base with the units using more than 25 drawers. Style your own unit configuration to fit your needs.






No. LF-2
2 Drawer Unit







No. LF-4
4 Drawer Unit







No. LF-6
6 Drawer Unit





No. LF-9
9Drawer Unit




No. Width High Depth Capacity
LF-51 33.5" 5.5" 18" 6000
LF-52 33.5" 9.5" 18" 12,000
LF-53 33.5" 13.5" 18" 18,000
NOTE: The tops on No's. LF-51, LF-52, or LF-53 are not finished. No. LF-55 top must be ordered separately. Look
down in this section for more Information




No. LF-51
5 Drawer Unit


No. LF-12-12 Drawer Unit -(Not shown), 3 drawers wide, 4 drawers high. See page 8 for leg base for No's. LF-9 and LF-12.




No. LF-52
10 Drawer Unit





No. LF-53
15 Drawer Unit








CF-30L

No. CF-30L-CARD FILE-30 drawer unit with leg base. No. CF-30S - CARD FILE - 30 drawer unit (not shown) same as above, but with solid closed base. No. CF-




CF-40S

No. CF-40S-CARD FILE--40 drawer unit with solid closed base. No. CF-40L-CARD FILE--40 drawer unit (not shown) same as above but with leg base.






CF-60L

No. CF-60L - CARD FILE - 60 drawer with leg base. No. CF-60S-CARD FILE-60 drawer unit (not shown) same as above but with solid closed base.




CF-72S

No. CF-72S-CARD FILE-72 drawer with solid closed base No CF-72L-CARD FILE-72 drawer unit (not shown) same as above but with leg base.


CF Model Information


No. Width High Depth Capacity  No. of Slide Shelves
CF-30L
CF-30S
33 1/2" 45 1/8" 18" 36,000 2
CF-40L
CF-40S
33 1/2" 53 1/8" 18" 48,000 2
CF-60L
CF-60S
40 1/8" 60 1/2" 18" 72,000 3
CF-72L
CF-72S
48 1/8" 68 1/2" 18" 86,400 3

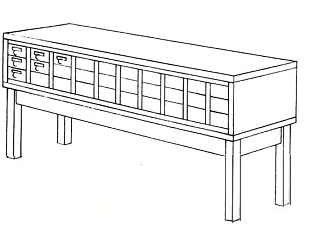

CF-310 - RANCH STYLE CARD FILE - 30 drawer, one piece I 1\4" high top, 18" deep. J 3Yi'' high, 66 3/8" long, leg base 26" high - Total height - 40 3/4"
CF-410 - RA CH STYLE CARD FILE - 40 drawer, same depth and length as 30 drawer but 44W' high. (Not shown)
  CF-610 - RA CH STYLE CARD FILE - 60 drawers. double face. same dimensions as CF-310 but 36" deep. (not shown)
  CF-810 - RA CH STYLE CARD FILE - 80 drawers, double face, same as CF-410 but 36" deep. (not shown) DRAWERS

ACCESSORIES FOR CARD FILES

To Be Used With Card File No's. LF-51, LF-52, LF-53

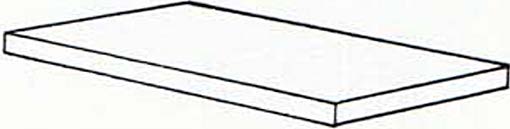

No. LF-55 Top 11 1/2"  high

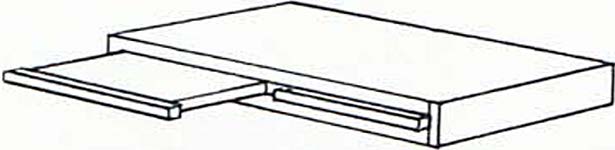

No. LF-56 Slide Shelf 2 1/2" high













LF-47

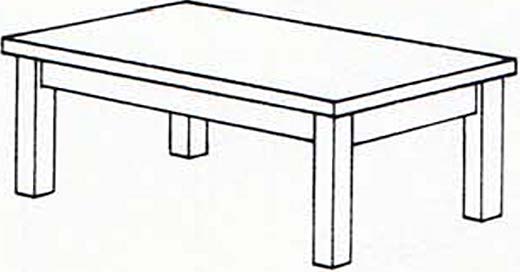

LF-58

No. LF-26 Leg Base 26 1/2" high same style as No. LF-58 but size for o. LF-9 or o. LF-12 Card Files - 20 1/2" W x 26 1/2" H x 18" D (not shown).
